Web Interface#

SenHub Agent includes a built-in web dashboard for monitoring agent status, exploring the API, and configuring your monitoring system integration.

Accessing the Dashboard#

Open a browser and navigate to:

http://agent-server:8080/web/{authentication-key}/

Replace agent-server with the hostname or IP address of the machine running the agent, and {authentication-key} with your agent’s UUID key.

If HTTPS is enabled, use https:// and the HTTPS port (default 8443):

https://agent-server:8443/web/{authentication-key}/

The web interface requires the web endpoint to be enabled in the storage configuration:

storage:
  - name: http
    params:
      port: 8080
      endpoints: ["prtg", "web", "nagios"]

Available Sections#

Dashboard#

The main dashboard displays:

Agent status and version
Operating mode (online or offline)
List of configured probes and their collection status
Number of cached metrics per probe
Memory and CPU usage
Agent uptime

This page gives you a quick overview of the agent’s health and activity.

API Explorer#

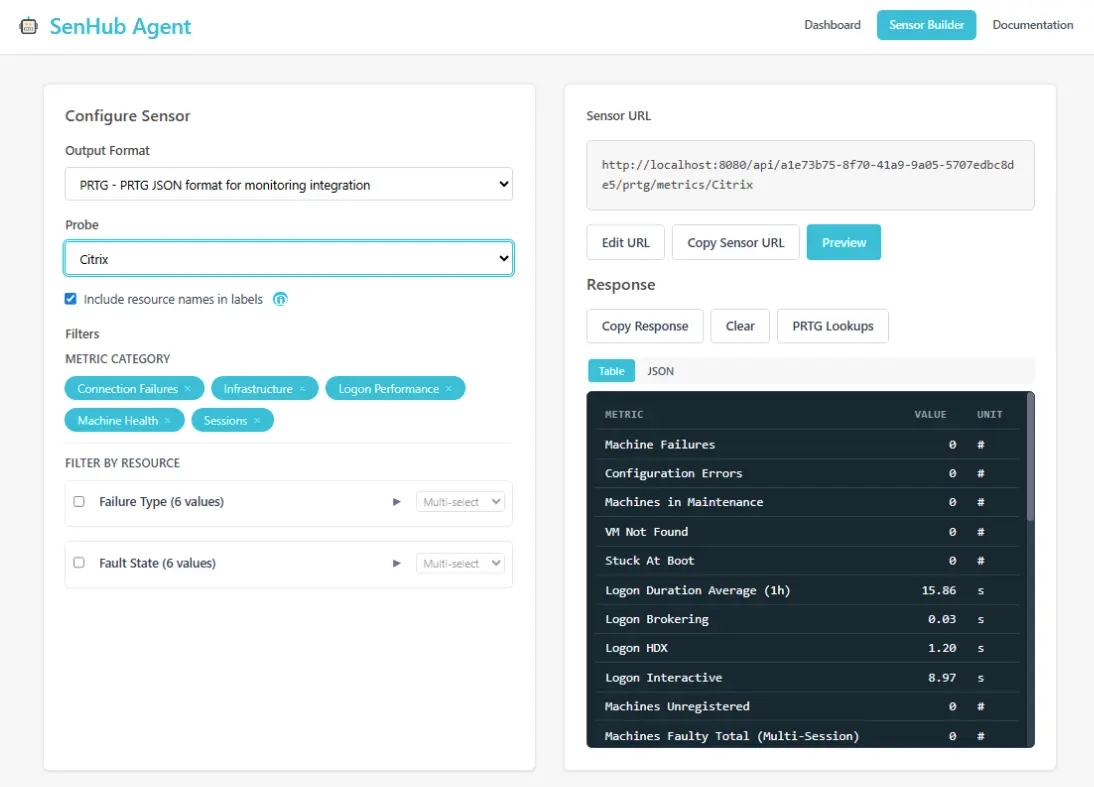

The API Explorer provides an interactive interface to:

Browse all available API endpoints and their HTTP methods
Test API calls directly from the browser with live responses
View the raw JSON output from each endpoint
Discover available probes and their metrics

This is especially useful when setting up PRTG, Nagios, or other monitoring tool integrations. You can see exactly what data is available and how it is formatted before configuring your monitoring system.

Documentation#

The Docs section provides embedded reference documentation accessible directly from the agent, without needing an internet connection. This is useful in air-gapped environments.

Monitoring System Integration#

PRTG Network Monitor#

Sensor Type#

Use the HTTP Data Advanced sensor type in PRTG. This sensor sends an HTTP request to the agent and parses the JSON response.

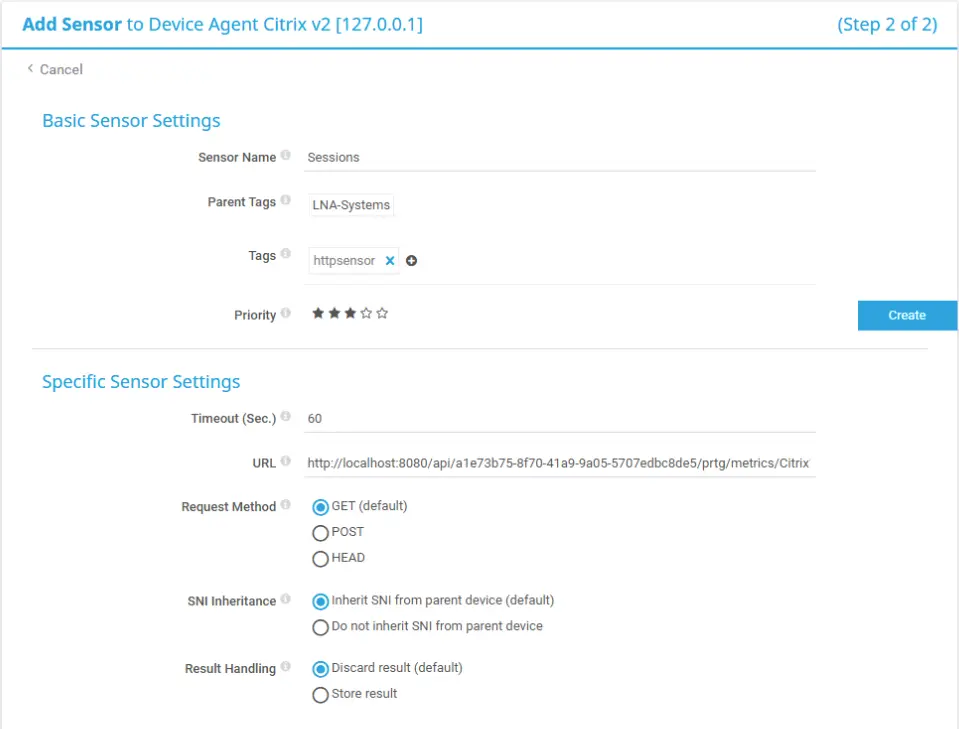

Creating a PRTG Sensor#

For each probe you want to monitor in PRTG:

In PRTG, right-click a device and select Add Sensor
Search for HTTP Data Advanced and select it
Configure the sensor:
- URL: http://agent-server:8080/api/{key}/prtg/metrics/{probe-name}
- Request Method: GET
- Content Type: Leave default

The agent returns metrics in the PRTG JSON format:

{
  "prtg": {
    "result": [
      {
        "channel": "CPU Usage",
        "value": 45.2,
        "float": 1,
        "unit": "Percent"
      },
      {
        "channel": "Memory Available",
        "value": 8192,
        "float": 1,
        "unit": "BytesMemory"
      }
    ]
  }
}

Each channel becomes a separate metric in PRTG with its own graph and alerting thresholds.

Finding Available Probe Names#

To see which probe names are available for PRTG sensors:

curl http://agent-server:8080/api/{key}/prtg/probes

Or navigate to the API Explorer in the web dashboard.

Filtering Metrics by Tags#

Some probes (Citrix, NetScaler) return metrics for multiple components. You can filter by tags:

http://agent-server:8080/api/{key}/prtg/metrics/{probe}?tags=vserver_name:vs_web

This returns only the metrics for the virtual server named vs_web.

Installing PRTG Value Lookups#

SenHub Agent provides custom PRTG Lookup files that translate numeric status values into meaningful text (e.g., displaying “Up” instead of “1”, “Down” instead of “0”):

Download the lookups from the agent API:
```
curl -o senhub-prtg-lookups.zip http://agent-server:8080/api/{key}/lookups/prtg
```
Or navigate to the API Explorer in the web dashboard and click the download button.

Extract the ZIP file to the PRTG custom lookups directory on your PRTG server:

Expand-Archive senhub-prtg-lookups.zip `
  -DestinationPath "C:\Program Files (x86)\PRTG Network Monitor\lookups\custom\"

In the PRTG web interface, go to Administration > Administrative Tools and click Load Lookups and File Lists

After loading the lookups, PRTG sensors will display human-readable status values instead of raw numbers.

The ZIP file contains lookup files in the PRTG .ovl format:

senhub-prtg-lookups.zip
  prtg.valuelookup.netscaler_lbvserver_state.ovl
  prtg.valuelookup.netscaler_service_state.ovl
  prtg.valuelookup.citrix_session_state.ovl
  ...

Nagios / Icinga#

For Nagios or Icinga, use the Nagios-formatted endpoints:

http://agent-server:8080/api/{key}/nagios/metrics/{probe-name}

The response follows the standard Nagios plugin output format:

OK - Probe has 12 metrics | cpu_usage=45.2% memory_available=8192MB

This can be used with check_http or a custom check command. Example Nagios command definition:

define command {
    command_name    check_senhub
    command_line    /usr/lib/nagios/plugins/check_http -H $HOSTADDRESS$ -p 8080 -u '/api/{key}/nagios/metrics/$ARG1$'
}

To list available checks:

curl http://agent-server:8080/api/{key}/nagios/checks

Zabbix#

For Zabbix, use the Zabbix-formatted endpoint:

http://agent-server:8080/api/{key}/zabbix/metrics/{probe-name}

Configure a Zabbix HTTP agent item to poll this endpoint at your desired interval.

Useful API Queries#

Check Agent Health#

curl http://agent-server:8080/health

Response:

{
  "status": "ok",
  "version": "0.1.80",
  "uptime": "2h30m",
  "probes_active": 4,
  "metrics_cached": 156
}

List Configured Probes#

curl http://agent-server:8080/api/{key}/info/probes

Response:

{
  "probes": ["CPU", "Memory", "Citrix Production", "NetScaler LB"],
  "probe_metrics": {
    "CPU": 4,
    "Memory": 3,
    "Citrix Production": 85,
    "NetScaler LB": 64
  },
  "total_metrics": 156
}

View System Information#

curl http://agent-server:8080/api/{key}/info/system

Returns version, uptime, memory usage, CPU usage, cache statistics, and service health.

Check License Status#

curl http://agent-server:8080/api/{key}/license/status

Response:

{
  "status": "active",
  "tier": "pro",
  "expires_at": "2026-06-30T23:59:59Z",
  "days_remaining": 120,
  "authorized_probes": ["cpu", "memory", "citrix", "netscaler", "redfish"],
  "free_tier_probes": ["cpu", "memory", "logicaldisk", "network"]
}

View Active Configuration#

curl http://agent-server:8080/api/{key}/config/probes

Returns the active probe configuration as read from agent-config.yaml.

Cache Statistics#

curl http://agent-server:8080/api/{key}/stats/cache

Returns the number of cached metrics, memory usage, and TTL (time-to-live) of the cache.

Clear the Cache#

If you need to force a fresh collection:

curl -X POST http://agent-server:8080/api/{key}/admin/cache/clear

This clears all cached metrics. The next collection cycle will repopulate the cache.
